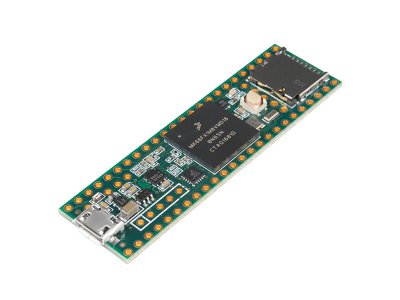

Teensy es una placa de desarrollo basada en el procesador de 32 bit ARM Cortex-M4 a 180 MHz que se puede programar desde el IDE de Arduino o en C
Nota: Cable USB no incluido.
Dimensiones: 62.3 x 18.0 x 4.2mm
VIDEO
Características:
180 MHz ARM Cortex-M4 with Floating Point Unit
1M Flash, 256K RAM, 4K EEPROM
Microcontroller Chip MK66FX1M0VMD18
USB High Speed (480Mbit/sec) Port
2 CAN Bus Ports
32 General Purpose DMA Channels
22 PWM Outputs
4 I2 C Ports
11 Touch-Sensing Inputs
62 I/O Pins (42 breadboard friendly)
25 Analog Inputs to 2 ADCs with 13-bit resolution
2 Analog Outputs (DACs) with 12-bit resolution
USB Full Speed (12Mbit/sec) Port
Ethernet mac, capable of full 100Mbit/sec speed
Native (4-bit SDIO) micro SD card port
I2 S Audio Port, 4-Channel Digital Audio Input & Output
14 Hardware Timers
Cryptographic Acceleration Unit
Random Number Generator
CRC Computation Unit
6 Serial Ports (2 with FIFO and Fast Baud Rates)
3 SPI Ports (1 with FIFO)
Real-Time Clock
